The Foramaflow STC/4 unit allows the vessel to ventilate naturally so that all of the air displaced during filling and emptying cycles and normal ambient temperature changes, will pass through the sterile air filter to the same high degree of efficiency in both flow modes.

The STC/4 unit is designed specifically for the food, beverage and pharmaceutical industries and in particular for use on storage vessels where the filter system is subjected to a range of harsh conditions from elevated temperatures, humidity, CIP procedures, vessel steaming and light chemical attack. The provision of inner and outer stainless steel grids ensures that filter integrity is maintained under reverse flow conditions during filling and emptying cycles.

The STC/4 HEPA filter is manufactured under a patented process and has been engineered to provide absolute microbiological protection with an even higher flow rate against a low pressure drop and to withstand ever increasing hostile operating conditions.

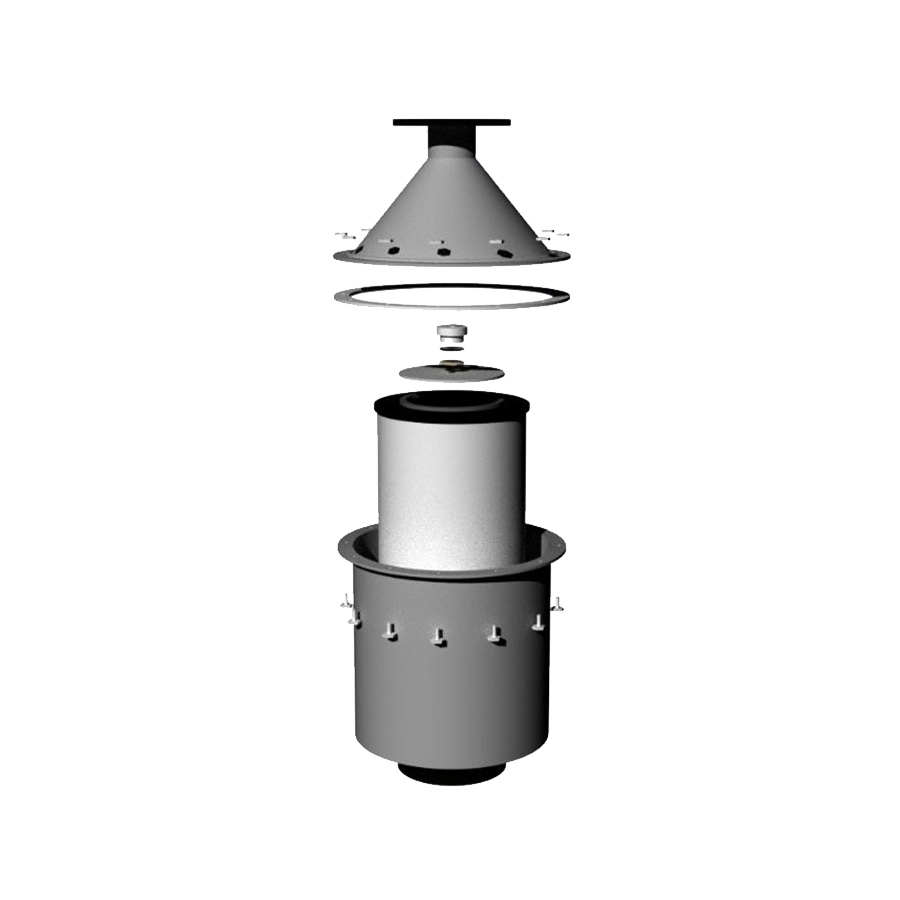

The STC/4 filter is certified in accordance with BS EN 1822 (H14) and tested against BS 3928. The Foramaflow STC/4 is also available as an in-line configuration.



Specifications

STC/4 Air Filter System – Tank Vent up to 2000m³/hr in both flow modes
Metalwork:
Stainless Steel
Filter Media:
Specially formulated Hydrophobic Microglass water repellent paper to BS 2823
Operating Temperature:
Up to 120°C for short periods. RH Conditions: 100% RH Environment (no free moisture)
Pressure Integrity:
3 Kpa min. Differential pressure in both flow modes.
TSE Free Manufacture:
The Foramaflow filter system is completely TSE Free (Transmissible Spongiform Encephalopathy) in accordance with the Food Hygiene, pharmaceutical and the MHRA industry standards, this includes all of our primary packaging.
Flow Rate:
1000m³/hr at an initial pressure drop of 120Pa - 2000m³/hr at an initial pressure drop of 250Pa
Efficiency:
HEPA filter >H14 - BS EN 1822. Tested against BS 3928
Termination:
Complete range of fittings available from 6" - 8".
The STC/4 system is available in a wide variety of configurations including dual and quad for application requiring up to 8000m³/hr. All housings are stainless steel and there is an option of a paint application to the stainless steel for the oil and gas industry. Other options include vacuum / pressure relief offsets allowing the incorporation of these valves onto the same connection stub as the vent filter reducing the number of connections required on the tank top. Country of origin United Kingdom. HS number 84213925
