Touch Screen IAQ Profile Monitor

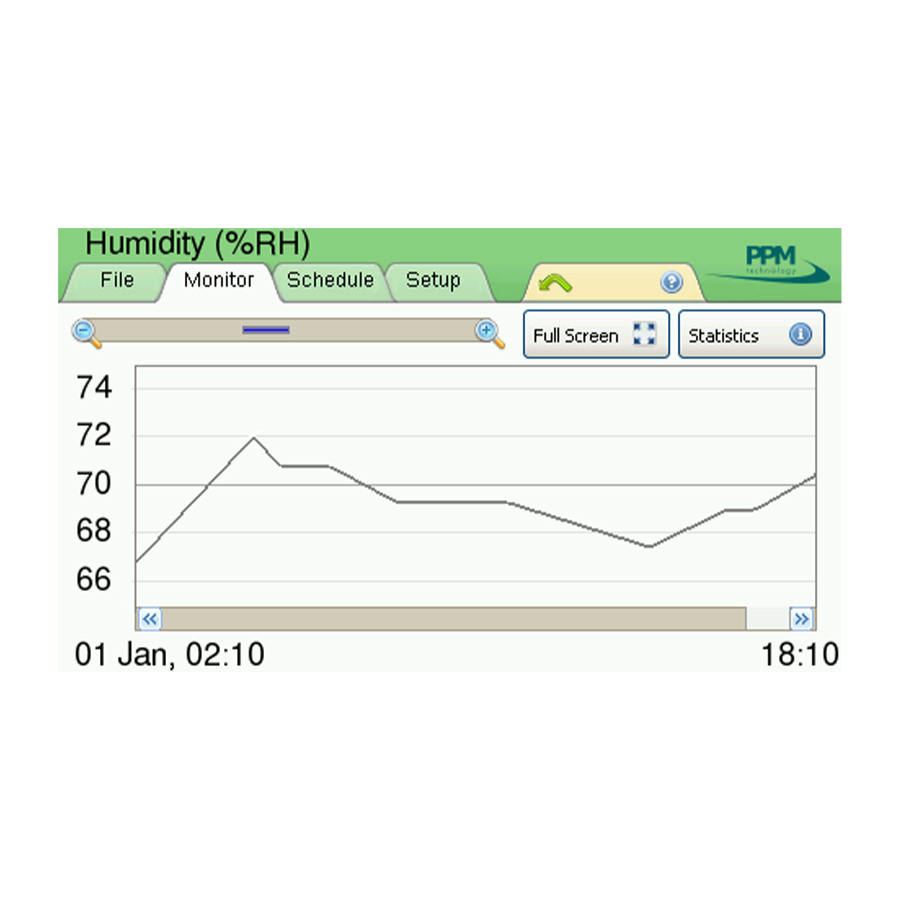

The Touch Screen IAQ Profile Monitor is a stand-alone Indoor Air Quality (IAQ) monitoring unit, capable of continuously monitoring multiple IAQ parameters. Sensor readings are displayed continuously and in real time. The Touch Screen IAQ Profile system has been designed to give a visual representation of indoor air quality in a building, as part of the buildings management standards in relation to conditions such as sick building syndrome. The user is able to navigate through the various sensors simply by touching the panel. The touch screen software allows simple control and navigation; the user can view the data graphically, create monitoring schedules, produce reports and statistical data, as well as enable alarm functions and notifications for more effective and economical building management.

  • A compact Indoor Air Quality (IAQ) monitor for use as part of a buildings management standards.

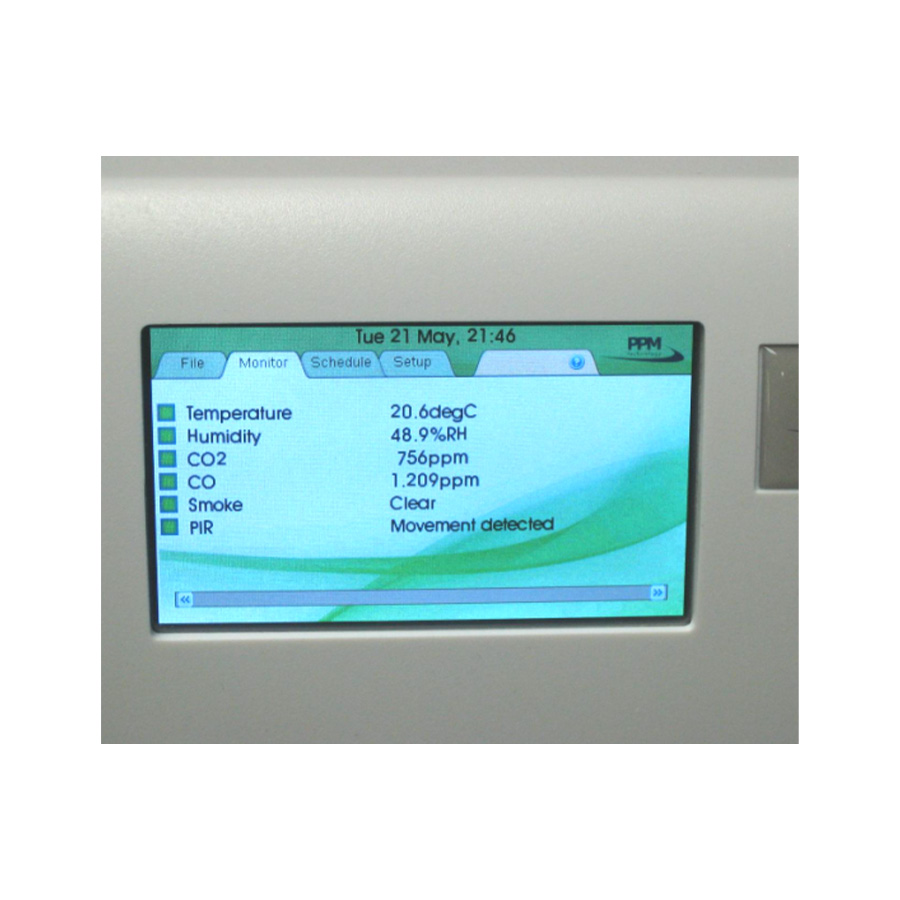

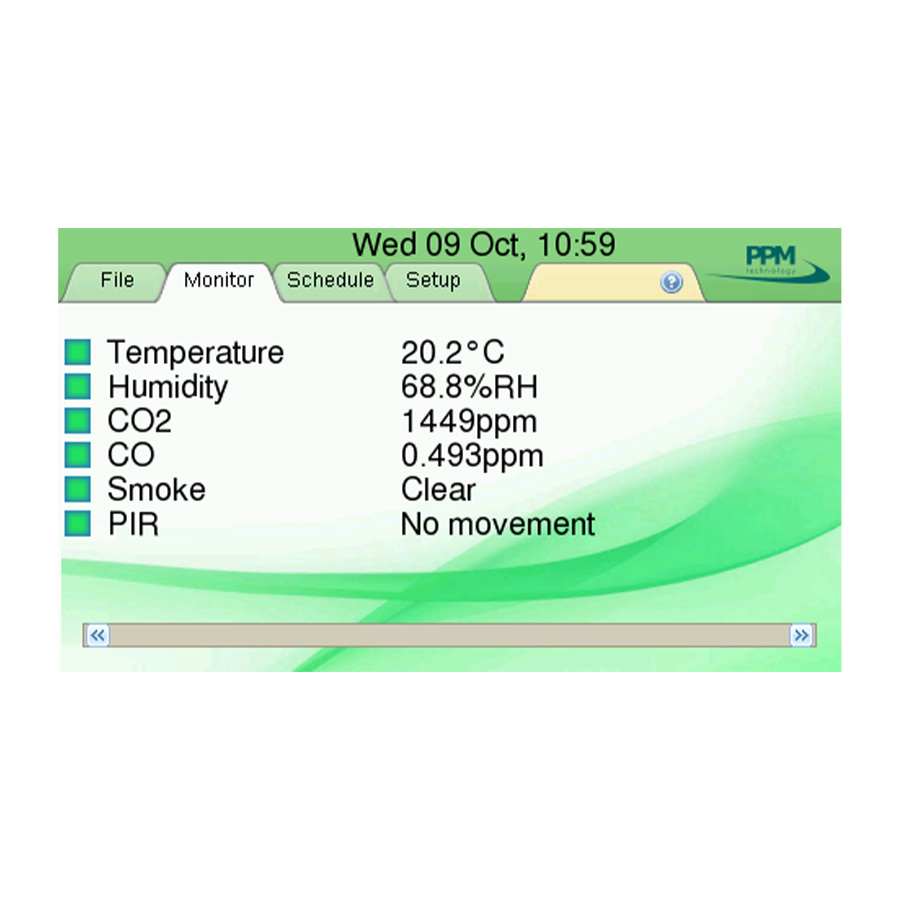

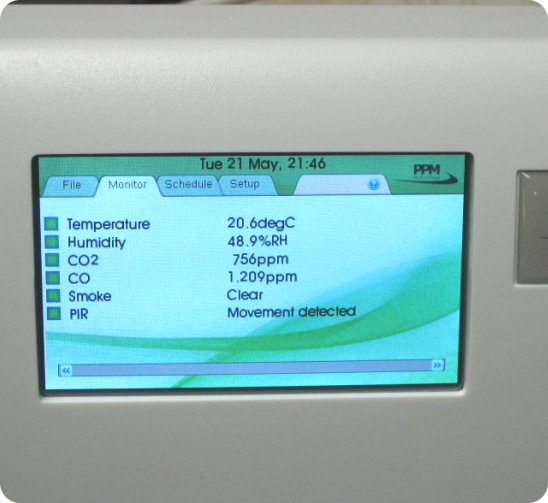

  • Built in touch screen, displaying current IAQ parameters in the building.
  • Wall mountable using standard VESA wall bracket.

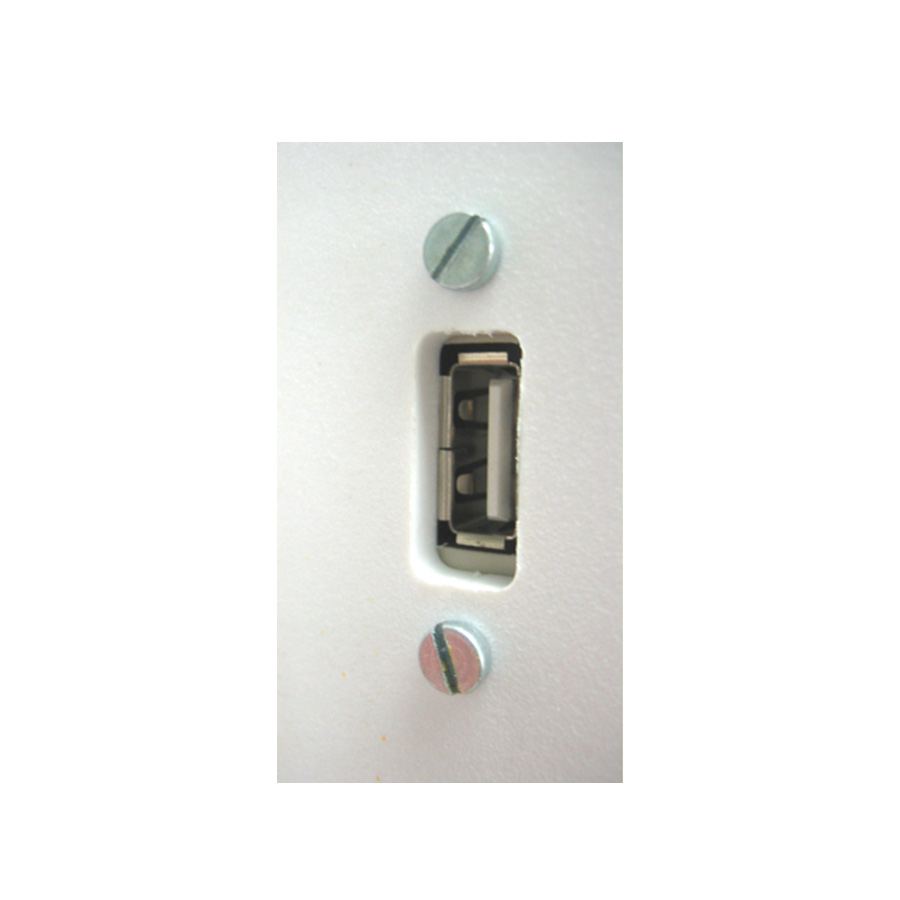

  • The unit includes a built in USB port for downloading data quickly and easily.
  • Each unit is configurable with up to 8 parameter sensors.
  • May be used as a stand-alone monitor or as part of a wider IAQ monitoring network.

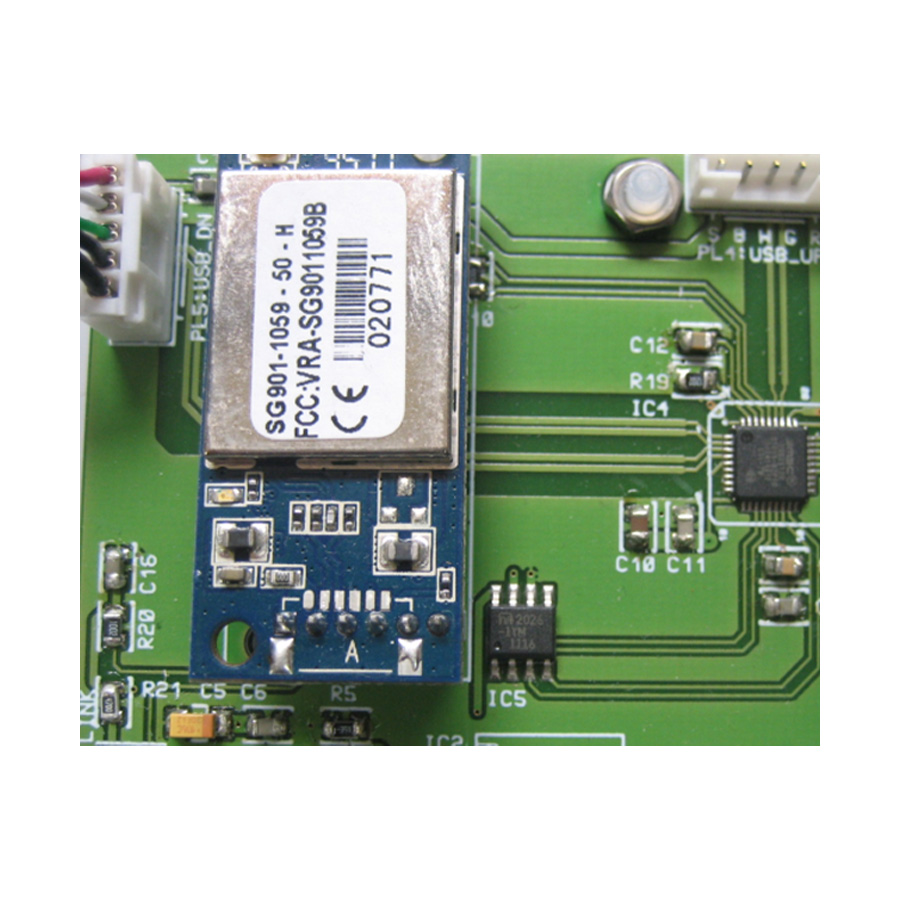

The Touch Screen IAQ profile monitor can be configured with Wi-Fi and or GSM modules. The Wi-Fi module allows you to connect the IAQ monitor to your home/office network with the ability to download sensor data from the unit to another computer. If the IAQ monitor is not within reach of any Wi-Fi network, then you can download the data using the built in USB socket located on the side of the instrument. The optional GSM module allows you to receive status updates and alarm alerts from the unit via text message to a mobile device. This early warning system allows you to keep right up to date with what the IAQ monitor is sampling, and also acts as an advance warning for staff working in the vicinity.

Mains Powered 12v DC via external DC adaptor with 2.5mm diameter jack plug
Operating Range 0-30oC, 15-90%RH
Dimensions 240mm x 240mm x 55mm (Houses up to 8 sensors)
Easy to Install Unit easily wall mounted via VESA standard bracket
Software Exclusive management software built specifically for the touch screen IAQ profile monitor

No setup required. Easy navigation between sensor readings using touch.

Sampling Rate Up to 8 parameter data values every minute



Air Quality Monitoring Equipment
Mains Powered:
12v DC via external DC adaptor with 2.5mm diameter jack plug Operating Range: 0-45oC, 15-90%RH
320 x 240, Resistive Touch.
240mm x 240mm x 55mm (Houses 6 IAQ parameter sensors as well as temperature and humidity)
Easy to Install:
Touch screen Unit easily wall mounted via VESA standard bracket.
Built in PPMonitor IAQ management software.
Sampling Rate:
Up to 8 parameter data values every minute.
CE, UKCA, RoHS and WEEE compliant
Manufactured in the United Kingdom. HS number 90271010 Sensor Options: Formaldehyde Temperature Humidity Nitrogen Dioxide (NO2) Carbon Monoxide (CO) Carbon Dioxide (CO2) Sulphur Dioxide (SO2) Total Volatile Organic Compounds (TVOC’s) Methane (CH4) Ammonia (NH3) Ozone (O3) Water (H20) single zone sensing cable Smoke Sensor Motion
