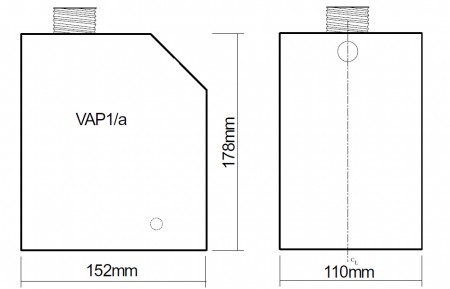

VAP/1 DimensionsTouse8Touse10

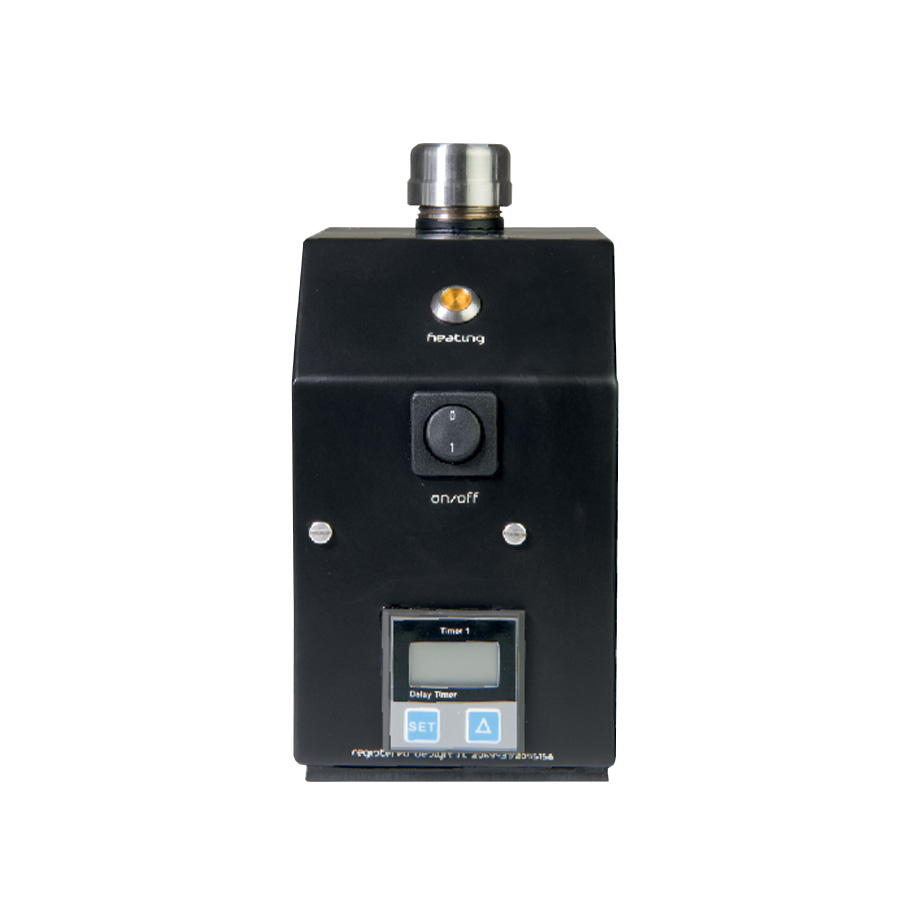

VAP/1 Vaporizer

Safety Cabinet Fumigation

The Foramaflow VAP/1 vaporizer range with automatic cut out is the easy and safe solution for the fumigation of your safety cabinet.

Read More >

The Foramaflow VAP/1 with a solution capacity of 120ml and can be mounted externally on the safety cabinet or placed inside before the cabinet is sealed. The VAP/1 incorporates an on delay timer to delay the start of the fumigation. All models are available in 220/240V.

The lightweight (2.5kg) VAP/1 Vaporizer units feature an automatic cut off device which will switch off the heating cycle as soon as all of the Formalin Solution has boiled off, making the fully automated process extremely safe, especially in overnight operations.

All metal parts are Stainless Steel, over painted externally with a hard wearing powder coated matt black finish. The standard discharge tube length is 55mm and is inclined upwards by 1 degree to reduce the effects of condensate dripping. All units are supplied with full instructions and technical data for the safe operation of the Vaporizer.

All Foramaflow Vaporisers Meet the performance requirements of ISBN 0 7176 2034 4 and BS EN 12469:2000 (British and European Standard)


VAP/1 (Timer. Allows fumigation cycle delay)

Fumigation Standards:

ISBN 0 71762034 4 & BS EN 12469:2000


CE Marked - RoHS and WEEE Compliant


Greater than 6 log reductions of resistant Bacillius Subtillis var niger spores


230v 1ph ac 3amp 50/60Hz

Standard Termination

1.7m long Mains Cable with UK 3 Pin Fused Plug. All other international plugs available

Solution Volume:


Country of Origin:

Manufactured by Foramaflow in Great Britain

  • All our Vaporizers feature an automatic cut off at the end of the cycle for added user safety.
  • The fully automated process maintains humidity for optimum fumigation efficacy.
  • On-Delay timer/programmer allows delayed start and remote switching functions.
