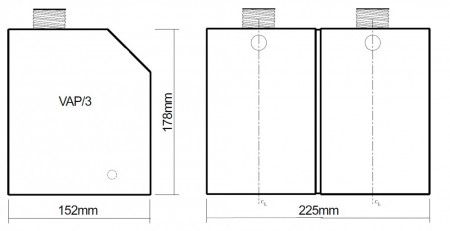

touse6touse5touse3VAP/3 Dimensions

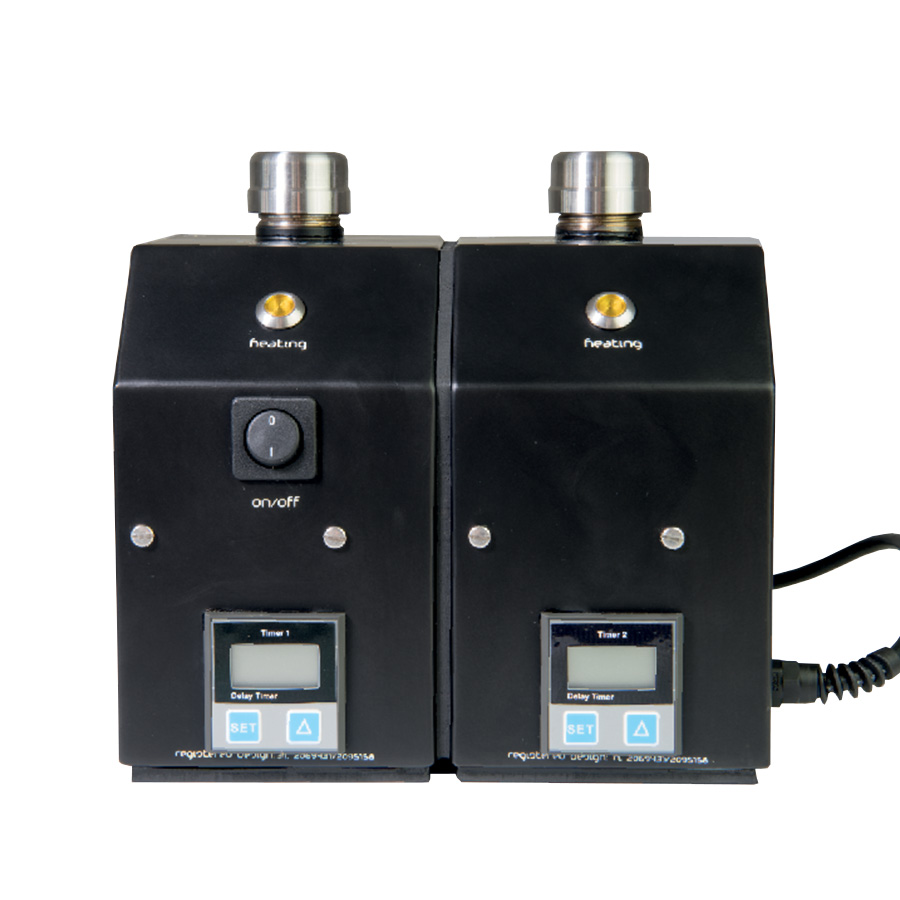

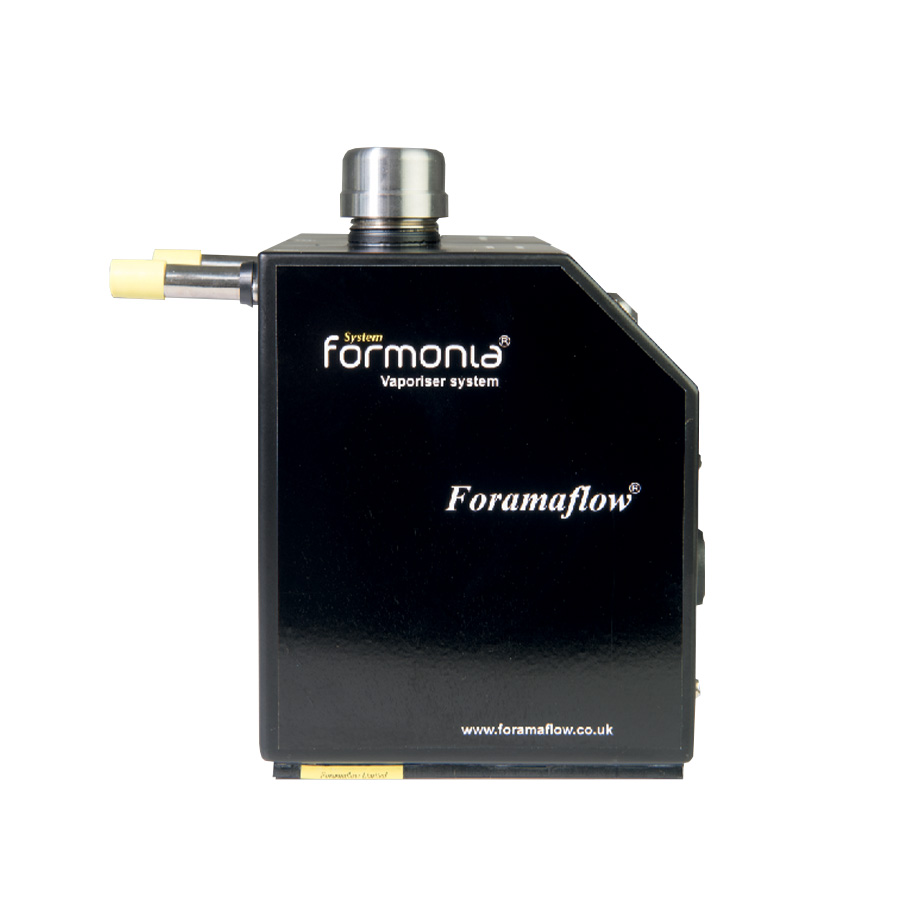

VAP/3 Vaporizer

The VAP/3 model provides a fully automatic decontamination and neutralisation cycle

Read More >

Independently tested for effectiveness at CAMR Porton Down and NATO, the VAP/3 is shown to be fully effective in killing micro-organisms with a log reduction of greater than 6 when tested with resistant Bacillus subtilies var niger spores. The Foramaflow VAP/3 range is our most popular. The fully automatic, simple, proven fumigation and neutralisation cycle is designed for use where the fumigated volume cannot be vented to atmosphere. Typically this covers the Class II re-circulating cabinet. Once the fumigation and desired dwell time has been completed, the neutralisation cycle will start automatically without any need for user input.

The VAP/3 incorporates an on delay timer to delay the start of the fumigation which can be set from 1 second upto 99 hours. All models are available in 220/240V. Each chamber has a solution capacity of 120ml and can be mounted externally on the safety cabinet or placed inside before the cabinet is sealed.

The lightweight (5kg) VAP/3 Vaporizer units feature an automatic cut off device which will switch off each heating cycle as soon as all of the Fumigation and Neutralisation solutions have boiled off, making the fully automated process extremely safe, especially in overnight operations.

All metal parts are Stainless Steel, over painted externally with a hard wearing powder coated matt black finish. The standard discharge tube length is 55mm and is inclined upwards by 1 degree to reduce the effects of condensate dripping. All units are supplied with full instructions and technical data for the safe operation of the Vaporizer.

All Foramaflow Vaporisers Meet the performance requirements of ISBN 0 7176 2034 4 and BS EN 12469:2000 (British and European Standard)


VAP/3 (Timer, allows fumigation cycle delay)

Fumigation Standards

ISBN 0 71762034 4 & BS EN 12469:2000


CE Marked - RoHS and WEEE Compliant


Greater than 6 log reductions of resistant Bacillius Subtillis var niger spores


230v 1ph ac 3amp 50/60Hz

Standard Termination

1.7m long Mains Cable with UK 3 Pin Fused Plug. All other international plugs available

Solution Volume

Chamber 1: 120ml (Fumigation)
Chamber 2: 120ml (Neutralisation)

Country of Origin

Manufactured by Foramaflow in Great Britain

  • All our Vaporizers feature an automatic cut off at the end of the cycle for added user safety.
  • The fully automated process maintains humidity for optimum fumigation efficacy.
  • On-Delay timer/programmer allows delayed start and remote switching functions.
